Aircraft Capacity Details : B757
The B757-freighter is a medium sized, short to medium range jet liner that can carry approximately 28 tonnes of cargo. The aircraft has a main deck that can accomodate fourteen P1 pallets and one AXY container. It also has two belly holds comprising of two compartments that can carry up to 15.4 tonnes of bulk loads.
| COMPARTMENT |
1 |
2 |
|
3 |
4 |
5 |

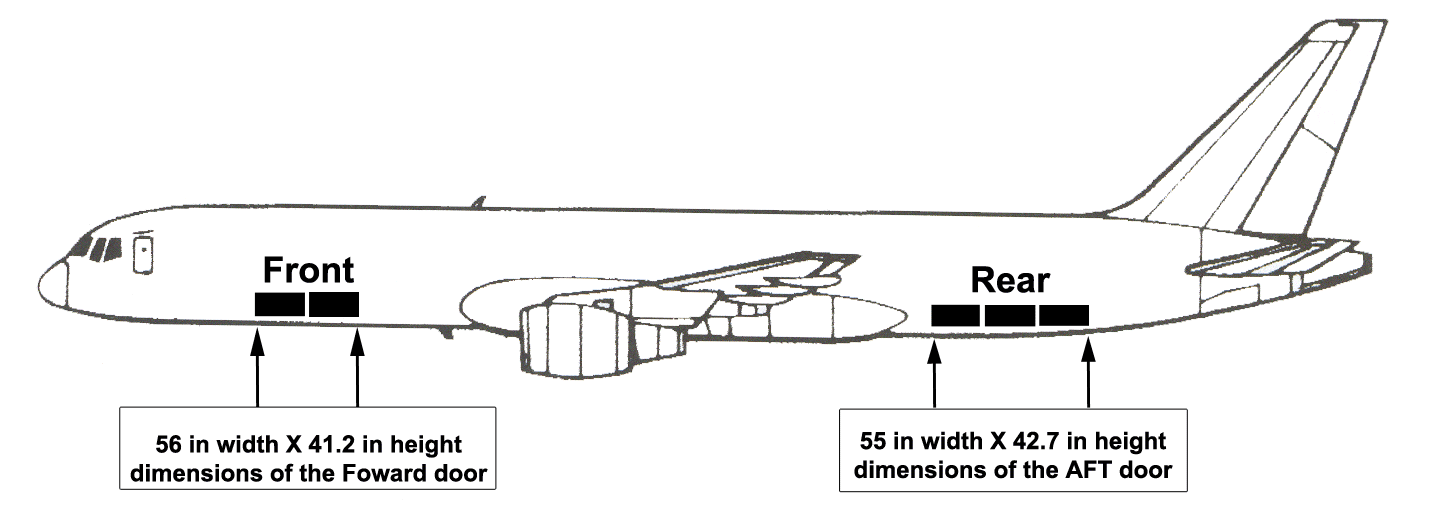

| HOLD |
FORWARD |
|
REAR |
| Max.Comp.Load |
2378 |
4200 |
(Kgs) |
3494 |
2193 |
3198 |
| Max.Floor Loading |
68 |
K./Sq.ft |
68 |
| Usable Volume |
19.8 |
(Cu.m) |
27.9 |
| Usable Volume |
699 |
(Cu.ft) |
988 |

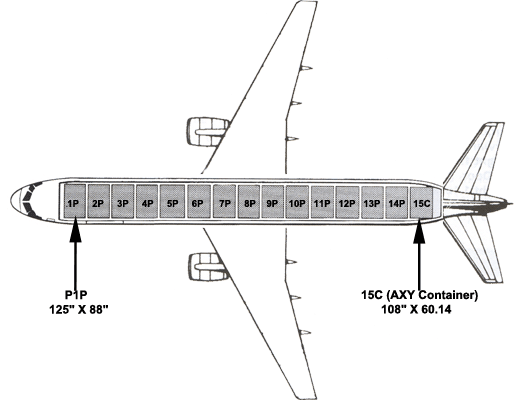

PALLET CONTOURS
| |
Bottom Width |
Left/Right Height |
Centre Height |
Max. Weight |
| 1P - 6P |
125in |
40in |
79in |
2267 K |
| 7P - 8P |
125in |
40in |
79in |
4263 K |
| 9P - 10P |
125in |
40in |
79in |
2267 K |
| 11P - 12P |
125in |
40in |
79in |
2222 K |
| 13P |
125in |
40in |
79in |
2131 K |
| 14P |
125in |
40in |
79in |
2041 K |
| 15C ( AXY Container) |
108in |
-- |
60.4in |
1043 K |
| Pallet Size |
: |
1P to 14P |
: |
P1P |
: |
125 in x 88 in |
| |
|
15C ( AXY Container) |
: |
P2P |
: |
108 in x 60.4 in |
| Volume |
: |
1P to 14P |
: |
174.4 cu.m |
|
| |
|
15C ( AXY Container) |
: |
4.2 cu.m |
|
|
| Total Weight of Pallet |
: |
1P to 14P |
: |
110 kgs |
|
|
| |
|
15C ( AXY Container) |
: |
136 kgs |
|
|
| Total Main Deck Volume |
: |
178.7 cu.m |
| DIMS of Main Deck Door |
: |
134 in x 88 in |
